RICOH MH5320/5340 GEN6 Industrial Level High Resolution Print Head

Home >> Products >> Ink and Printhead >> Printhead >> RICOH MH5320/5340 GEN6 Industrial Level High Resolution Print Head

View Larger Image

Product Details:

Model:: Ricoh MH5320/5340 GEN6

Select Payment and Shipping Terms:

Min. Order Quantity:: 1 Piece/Pieces

FOB Price:: USD 2500.00-2700.00 /

Shippment Port:: Shanghai Port

Payment Terms:: T/T,Other

Show Buyers your Ability to Supply:

Production Capacity:: 2000 Piece/Pieces

Delivery Time:: Month

Packaging:: In original Ricoh Packing

Mr. Lee Leo

Send a Message to this Supplier

Supplier Details

Shanghai Wit-Color Digital Science & Technology Co., Ltd.

[Shanghai,China (Mainland)]

Business Type:

Manufacturer,printer

Contact Details

Online Showroom: 185 Products
Other Similar Products from this Supplier
View this Supplier's Website

Product Details Company Profile

Characteristics

High-definition and High-productivity

A minimized 5pl droplet size and improved jetting accuracy yields excellent print quality without graininess. With 1,280 nozzles configured in 4 x 150dpi rows, this head achieves high-resolution 600dpi printing. Greyscale features a maximum frequency of 50kHz, allowing for increased productivity.

Enhanced Ink compatibility

This head is compatible with UV, Solvent and Aqueous based inks. Specifically, the aqueous ink compatibility and service life of the MH5320/MH5340 is more than double that of the MH5421/MH5441 that preceded it.

* Results obtained using ink and evaluation procedures defined by Ricoh

System compatibility

A new, straightforward alignment method using printhead surfaces enables high precision positioning accuracy and easy alignment. Printhead replacement is simple. In addition to official MH cables, customers may design cables compatible with their application as needed with the existing cable structure.

Page Top

Specifications / External dimensions

Featuring high durability and enhanced ink compatibility, this Inkjet Head enables high definition and high productivity applications.

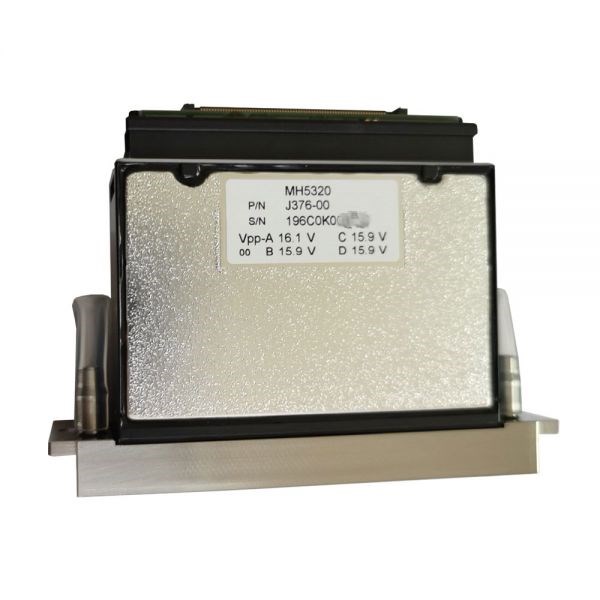

image：RICOH MH5320 (two color model)

	MH5320	MH5340	MH5320 Type A
Method	Piston pusher with metallic diaphragm plate
Print Width	54.1 mm (2.1")
Number of nozzles	1,280 (4 × 320 channels), staggered
Nozzle spacing (4 color printing)	1/150"(0.1693 mm)
Nozzle spacing (Row to row distance)	A : 1.101mm B : 11.811mm
Compatible ink	UV, Solvent, Aqueous, Others.
Total printhead dimensions	89(W) × 66.3(D) × 24.51(H) mm (3.5" × 2.6" × 1.0")
Weight	228g (including 45C cable)
Max.number of color inks	2 colors	4 colors	4 colors
Operating temperature range	60℃
Temperature control	Integrated heater and thermistor
Jetting frequency	50kHz (3 levels) 40kHz (4 levels)
Grey-scale	4 levels
Drop volume	Binary mode : 5pl / Grey-scale mode : 5-15pl
Viscosity range	10～12mPa・s
Surface tension	28～35mN/m
Ink port	Yes	Yes	No

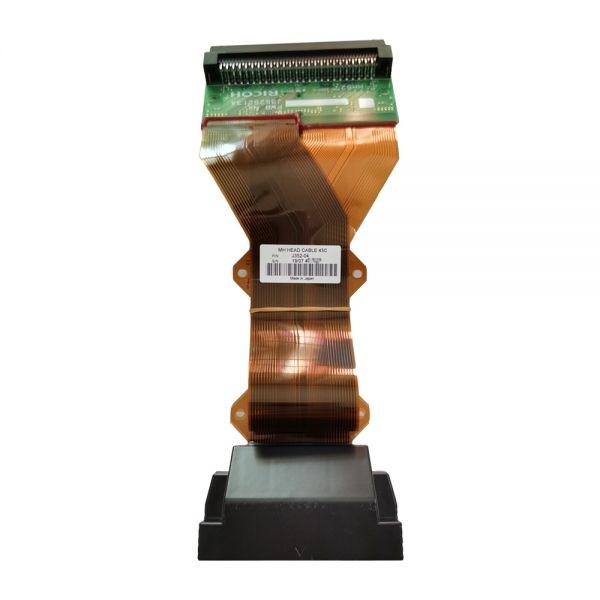

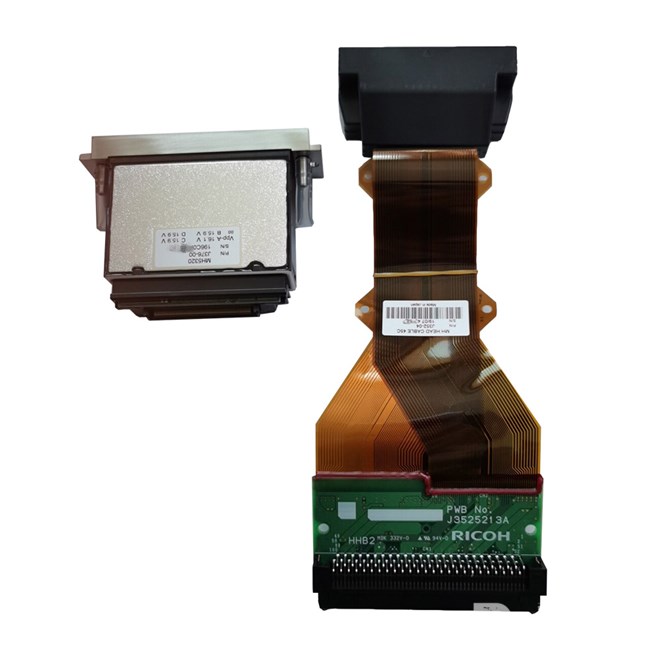

Separately sold parts	MH5320 / MH5340 / MH5320 Type A dedicated cable

*Results obtained from continuous jetting test using standard Ricoh test fluid.

image：Specifications / External dimensions
