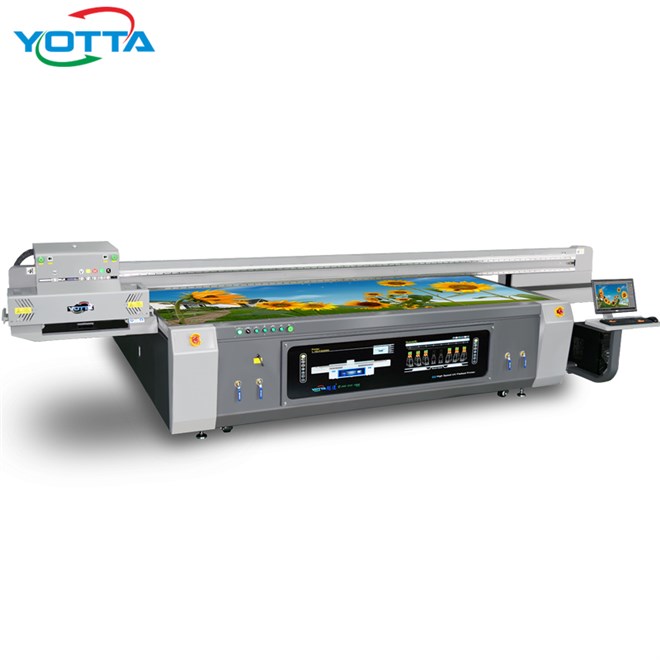

YD-F3216R5 Large Format UV Flatbed Printer
Facebook Twitter Delicious Google Email this page
Product Details:
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
USD 23000.00-89000.00 /Set
Shippment Port:
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
5 Set/Sets
Delivery Time:
wood case
Mrs. Teng pauline

Send a Message to this Supplier

Product Details Company Profile

With large format print size of 3.2M×1.6M, YOTTA YD-F3216R5 flatbed UV printer deliver outstanding printing results on a wide range of materials, including glass, metal sheet, wood, plastic, PVC, EVA, yoga mat, leather etc. With YD-F3216R5 large format uv flatbed printer, you can create your own custom printed products which is higher-value, and stand your business out on the market.

Features of YD-F3216R5 Large Format Flatbed Printer
1. High Print Speed & High Print Resolution

YOTTA YD-F3216R5 large format uv flatbed printer employs Ricoh Gen5 internal heating print heads, which is recognized as high-end print heads with high performance by the industry. The maximum resolution can up to 2400 × 600DPI, the printing results is always oustanding.

2. Naturally smooth color transition

YOTTA’s YD-F3216R5 large UV flatbed printer supports 7pl-35pl variable ink droplet printing, easily achieving smooth color transition, the prints seem more naturally. Besides, variable inkjet printing printing is conducive to saving the use of ink, reduce production costs.

3. Print white ink & Varnish

This machine has the capability to print UV white ink & varnish. White ink can help create stunning embossed effect, print patterns on dark panels. Varnish printing make the printed surfaces glossy and higher-end, also can play a protective role.

4. Eco-friendly UV Ink, 7 color optional

Consistent with YOTTA’s other UV printers, YD-F3216R5 uses eco-friendly UV curing ink which is VOC free.  Besides, it supports 7 printing colors optional (CMYK, Lc, Lm, White ink), giving more choice room for customers.

5. LED-UV curing system

It can be said that LED-UV curing is a standard items of  our UV printers. Because UV LED lamp is more energy-saving, effective and greener compared with traditional UV curing source. And we think this is what customers need.

6. Wide applications

YD-F3216R5 large format UV flatbed printer can print on any materials as following with outstanding results:

  • Rigid materials: glass, ceramic tile, metal plate, wood panel, acrylic, KT board, PVC sheet, Melamine sheet, Marble board, etc.
  • Flexible materials: paper, plastic film, leather and more.

7. Useful functions & operator-friendly designs

There are many functional designs for easy operation and maintenance, for example:

  • Suction platform: make more stable printing and easy to unload heavy print products.
  • Auto-stir white ink function: to prevent the white ink precipitation, making the printing process more effective.
  • Automatic materials thickness measurement: automatically measure the thickness of materials. It is more precise, time-saving and labor-saving.
  • Negative pressure system: make more smooth ink supply. It can effectively avoid leaking ink, also save ink.


Printer Model YD-F3216R5
Print Size 3200 × 1600 mm (11 × 5 ft)
Printhead Ricoh-Gen5 grey level Piezo print head
Printhead Quantity 2-8 pcs (4-8 colors optional)
Print Resolution 600×2400 DPI
Material Thickness Up to 100mm (4in)
Material Type Rigid and flexible material
Printing Material Glass, acrylic, wood, ceramic, metal, PVC, corrugated board, plastic, etc.
Ink Color C, M, Y, K, Lc, Lm, White ink, Varnish  (optional)
Ink Type Eco-friendly UV curing ink (NO VOC)
Interface Mode High Speed USB
UV Curing System LED UV lamp
RIP Software Onyx
Color Management International standard ICC
Input Format Adobe Postscript Level 3, PDF, JPEG, TIFF, EPS, AI
Printer Weight 1500KG
Printer Size 5150mm[L] × 2400mm[W] × 1400mm[H] (17ft×7.9ft×4.6ft)
Package Size 5400mm[L] × 2600mm[W] × 1830mm[H] (17.7ft×8.5ft×6ft)
Power Requirement 220V/AC(±10%), 50/60 HZ, 6KW
Working Environment Separate, little sunlight, ventilated workshop, Temperature: 18℃~30℃(64℉~86℉); Humidity: 30%~70% (Non-condensing); Ventilation equipment: suggest overhead exhaust fan, displacement 600cfm.
