- Widely applied in all kinds of rigid mental boards, PCB, glass, solar glass, plastic, wood, ceramic,and so on, through
- roller coating one can achieve excellent mirror effect without the trace of the roller, and also save coating material, all
- of which greatly enhances product quality and efficiency.
- Avoiding spots, roller can achieve the effect of spraying; and also reduce coating material waste.
- The fuction of UV machine: make the paint on the surface dry immediately (3-5 seconds), greatly save the time for drying.
- The laser wheels can automatically adjust the height. The laser roller is working with the laser light, which can erase the
- trace of the roller.
- Laser wheels adopt hydraulic pressure device which makes the surface of coating look well-distributed.
- The whole equipment adopts electrostatic painting, is corrosion resistance, and can be cleaned casily.
- The main electric part are from French Schneider Company.
- The motor is from renowned Tai Xin Su, the speed is controlled by Taiwan Taida converter, with stable function.
- The UV lamps are imported with 800 hours life span. Reflectors are of imported material as well.
- The power supply is from Taiwan which is high on energy saving & has higher working efficiency.
- Temperature control device is used to control the temperature.
- The whole structure has a warranty period of one year. (except the lamp)
|

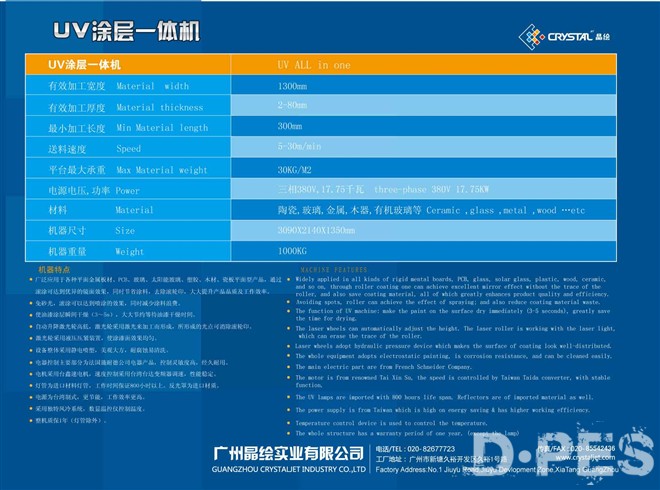

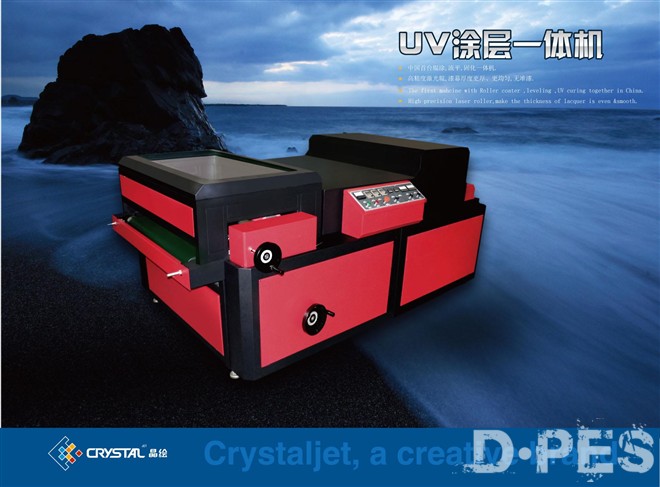

UV ALL in one
|
UV ALL in one
|
|
Material width
|
1300mm
|
|
Material thickness
|
2-80mm
|
|
Min Material length
|
300mm
|
|
Speed
|
5-30m/min
|
|
Max Material weight
|
30KG/M2
|
|
three
|
phase 380V 17.75KW
|
|
Material
|
Ceramic, glass, metal, wood ...etc
|
|
Size
|
3090X2140X1350mm
|
|
Weight
|
1000KG
|
We are not only making printers but also doing a lot of work on printing application and resolution. We are creating a wider business view to all our users and our customers. Here are three companies in our Industry park: Crystaljet for making advertising printers, Kingtau who is making Ceramic printer, and My-room is working on the application with digital printing. When you visit us, you will get a whole view on the printing industry, as well as its application.
We have a strict way of doing market channels, and 100% protect distributor's and user's profit by taking good care of the after sales service and share with customers our new progress in technology.
We sell, we Care.
This is Crystaljet, a good business partner that you are seeking for.
