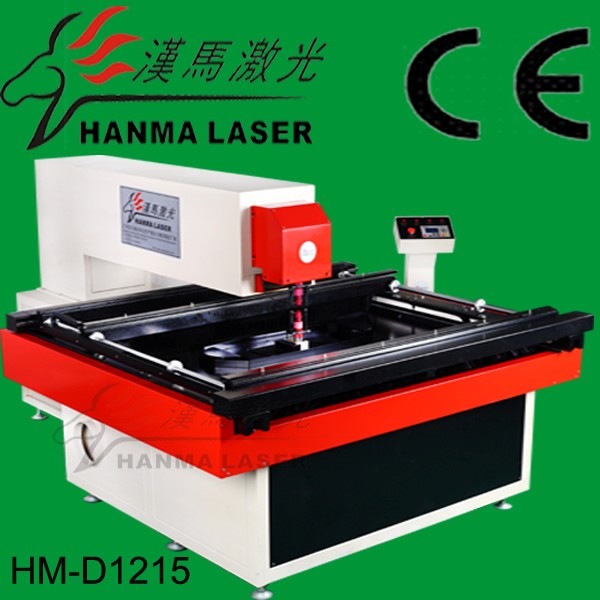

Template Carton Die Board Laser Cutting Machine
Parameter
|
Model
|
HMD15
|
|
laser power
|
300W laser tube
|
|
The form of optical path
|
Fixed optical (laser head fixed ,plate movement)
|
|
Engraving area
|
1200*1500mm
|
|
Engraving speed
|
0-64000mm/min
|
|
Resolution ratio
|
0.025mm
|
|
Engraving material and thickness
|
Wood 6-9-15-18-22MM,PVC acrylic and nonmetal
|
|
Resetting positioning accuracy
|
±0.02mm
|
|
Cooling water temperature
|
5-30
|
|
Cooling water
|
Purified water without impurity
|
|
Protective gas
|
Dry oil-free air
|
|
Relative humidity
|
≤80%
|
|
Power supply
|
220V±5% 50HZ
|
|
Cutting speed
|
0-5000mm/min software setting (18MM wood;30M/min
|
|
Digital control panel
|
LCD Chinese and English operating menu ,touching button
|
|
Transfer port
|
USB connection off-line operation ,devices can be individually placed in
|
|
Set of instructions
|
International standard ;compatible with CDR,CAD software ,etc.
|
|
Graphic format supported:
|
BMP,GIF,JPEG,PCX,TGA,TIFF,PIT,CDR,DWG,DXF
|
|
Weight
|
800KG
|
|
Dimension
|
L3000*W1600*H1700(MM)
|
Characteristics:
1:Fixed optical(laser head fixed,plate movement)
2: The two sides of the import of precise ball screw driving(More accurate than the general accuracy), Error of 0.05mm Precision Electronic Die cutter
3:It can cut the thinkness 18-22mm one time ,absolutely straight and uniform ,the cutting speed is 0.5 mm/per min,can finish one colourful box with half and hour.
4: Low power consumption,low cost, 220 one-way electric, 3 kWh / hr (300W power models),the type of 700w consumes 10/one hour
5:stability of high-strength machine,,about one ton,cant distort and contort for long work.
6:Can immeditately to use once start-up the computers,Dont need to wait power shoutdown to save time and consuptions.
7:Our three unique protection functions, i.e. anti-interference function, water-protective function and power cut-off function ensure longer working life, stability and effectiveness
Machine Parts :
Sample Display
