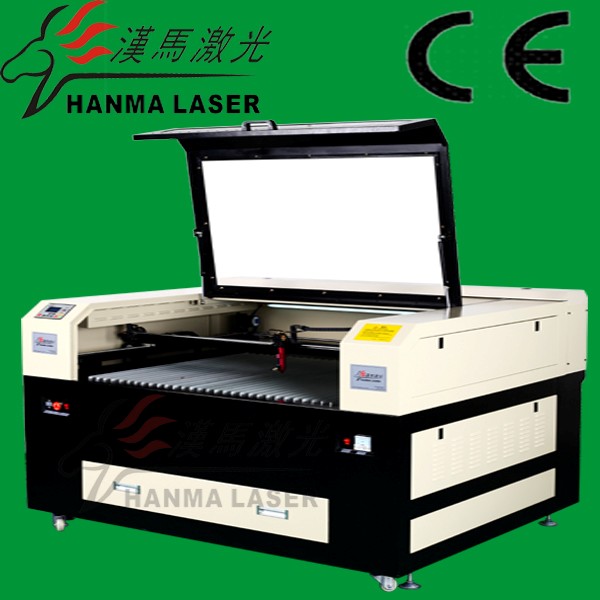

mini paper & cloth laser engraving cutting machine(HM-6040)
Parameter
- engraving & cutting area: 600×400mm
- Laser power: 40W ,60w,80w ,100w
- Cutting speed: 0-64000(mm/min)
- Resolution ratio: 0.025mm
- Power supply: AC220V±10%.50HZ
- Gross power: <1250W
- Operating temperature : 0°C -45°C
- Operating humidity : 5%-95% (free of condensed water)
- Graphic format supported : BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,DXF
- Net weight : 200kg
- Auxiliary : Industry cooling system , air pump , exhaust fan device
- option part : honeycomb ,up and down table , rotary unit
Features
1.High speed USB offline control system. On this series of machine, framework Interally designed, working stabilize, economic and practical type machine widely used.
2.This machine uses USB port to transmit data, equipped with large-capacity internal memory, improving working speed and efficiency greatly.
3.Our three unique protection functions, i.e. anti-interference function, water-protective function and power cut-off function ensure longer working life, stability and effectiveness
4.Original Singapore imported lens with molybdenum base makes the equipment produce smaller facula and stronger cutting force, greatly improving working efficiency and reducing cost.
Machine Parts
Applicable Industry :
cloth ,embroider,fabric toy,reticule,glove,bag,leather engravingcutting,model advertising, decoration, electric product, rubber ,acrylic product ,middle density board etc.
Applicable Materials :
Wood, paper, leather, cloth, organic glass, resin, acrylic, wollen, plastic, rubber, ceramic tile,crystal, bowlder, bambboo.
Guarantee & Aftersales Service
Guarantee for one year.
24-hour technical support by email or calling
Sample Dislay
Looking for distributors around the world
