Character Features

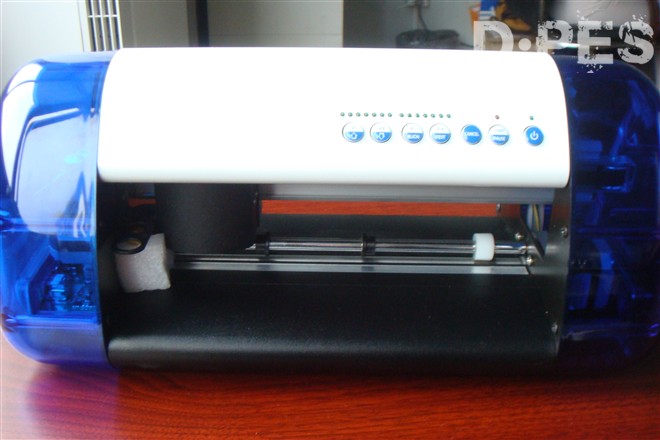

◆A small cutting and drawing plotter with a registration mark laser on it.it
◆Drawing, cutting, kiss-cutting the outline sketch of the printed cartoon or other graphs for your business and hobbies
◆Powered by a 16V DC adaptor.Compatible with Windows 7(64bits &32bits), VISTA, XP, 2003, 2000.
◆A Windows driver is provided and enables output from leading drawing software (eg CorelDRAW 12, Adobe IllustratorCS).
Technical parameter(Artistic Type)
|
Model Item
|
JK240
|
JK330
|
|
Max. cutting range
|
190*2000mm
|
290*2000mm
|
|
Material Width
|
A4 size
|
A3 size
|
|
Net weight/Gross weight
|
4.5/5.5kgs
|
5.5/6.5kgs
|
|
Packing size
|
49*26*35cm
|
58*26*35cm
|
|
Configuration
|
Grit-rolling
|
|
Drive System
|
Stepping motor
|
|
plotting speed
|
10-280mm/s(7 ranks optional)
|
|
cutting force
|
60-350g(7 grades optional)
|
|
Available Material
|
PVC or lactoprene sheet(less than 0.1mm thickness)
Drawing paper, postcard, back-glue print paper, ink jet photo paper
|
|
interface
|
USB1.0 or RS232
|
|
Power supply
|
Dedicated adapter, DC 16V 2.5A
Input AC100V~AC240V;47HZ-66HZ
|
|
Language Format
|
DMPL/HPGL
|
|
Operation Environment
|
Temperature:5℃~30℃
Relative humidity:(35%-80%)without condensation
|
|
N,W/G.W (kg)
|
4.5/5.0KG
|
5.5/6.0KG
|
|

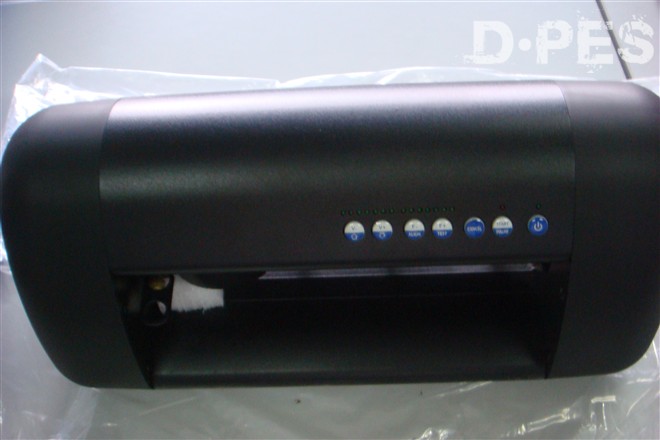

colors
|
White color, White & Blue color, Red color, black color, Red & Black color
|
