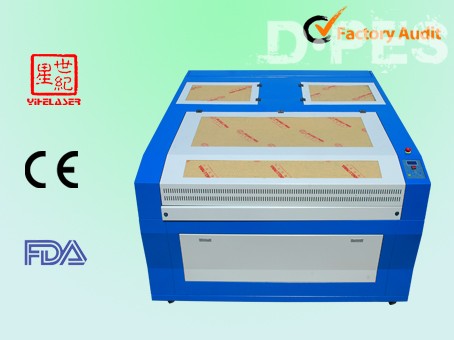

YH-G1612 dual heads laser engraving cutting machine
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
YH-G1612
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-10000.00 /
Shippment Port:
TIANJIN/SHANGHAI/QINGDAO/GUANGZHOU
Payment Terms:
T/T,Western Union,Other
Show Buyers your Ability to Supply:
Production Capacity:
10 Set/Sets
Delivery Time:
Month
Packaging:
plywood carton (free-fumigating)
Ms. zhao wenhui



Send a Message to this Supplier

Product Details Company Profile

YH-G1612 dual heads laser engraving cutting machine

Technical parameters:


Model

YH-G1612

Laser type

Sealed CO2 laser tube

Laser power

80W/100W/130W, 60W+80W/80W+80W(Dual laser head)

Engraving area

1500*1110mm(59.05"*43.70")

Cutting area

1540*1110mm(60.63"*43.70")

Appearance size

2020*1690*1035mm(79.53"*66.54"*40.75")

Engraving speed

0-1200mm/min

Cutting speed

0-200mm/min

Cutting thickness

0-20mm

Characters

2.5mm English letter, 3.5mm Chinese character

Positioning precision

±0.01mm

Electric lift platform

Adjustable height of 300mm

Format support

AIBMPPLTDXFDST etc

Power supply

AC220V± 5% / 50HZ-60HZ



Product features:

·         Professional design ideas, customized for the users in different industries, elegant appearance and appliance..

·         LED, USB2.0 offline card, 128M memory space..

·         Professional move control system, adopts advanced three-phase step motor and transmission system in high speed and precision.

·         The laser power supply has the exclusive self-protection setting, ensure the stability and safety of the machine to the highest degree. Electronic control lift platform, convenient to feed the material in back and forth, easy and felxible to operate can engrave materials with different height

·         Adopt the aviation light path system, imported linear guide rail, to guarantee the smoothness of the light knife moving and high engraving precision.

·         Red light position system realizes the high position without laser

·         (Optional) Auxiliary rotary device: Process the cylinder object and break through the engraving limit of 2-dimenision.

Applicable materials:

Wood, paper, leather, cloth, Plexiglas, epoxy resin, density board, double-colored board, marble, plastic, rubber, ceramic tile, crystal, bamboo and other nonmetal materials.



Applicable industries:

  • Packing printing: paper carton, knitting bag, handbag, rubber board for printing.
  • Advertisement: acrylic cutting, label making, double-colored board engraving.
  • Art and gift: wood, bamboo, image, ornament, prizes engraving.
  • Leather and garment: leather, leatheroid, garment embroidery and sampling...
  • Others: sample, marking, model-making, surface drawing, decoration etc.





Service Supported

  • 1,One year guarantee for the whole set of machines, not including normal replacement of wearing parts.

    2,24 hours technical support by email or calling. When it is necessary, we will send technician to the customer side to solve the problem.

    3,User-friendly English manual and CD for machine using and maintaining.

    4.Free lifetime upgrading of self-developed English software.
