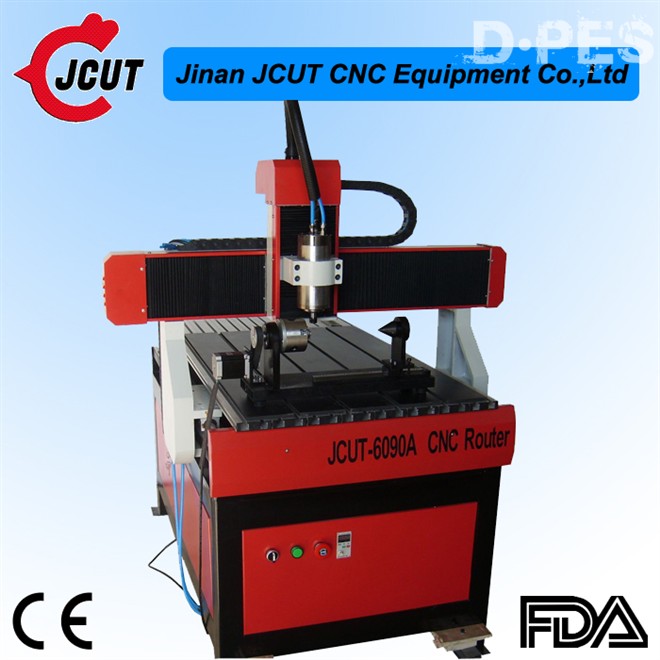

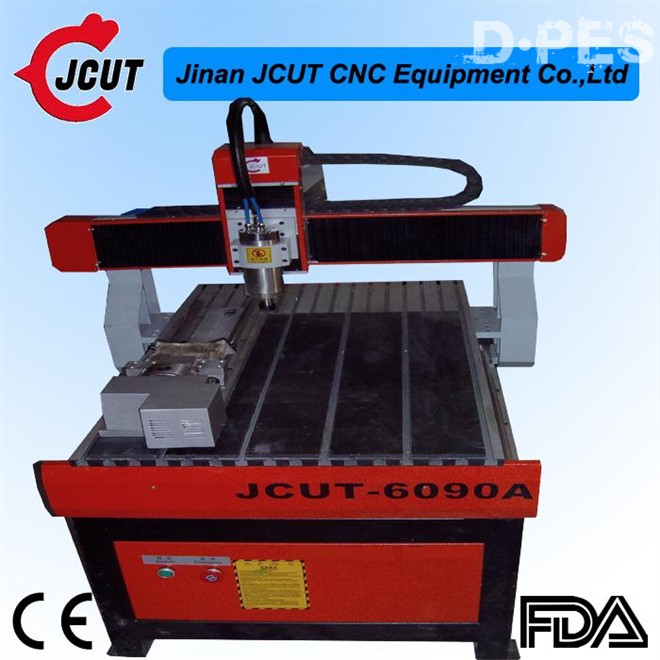

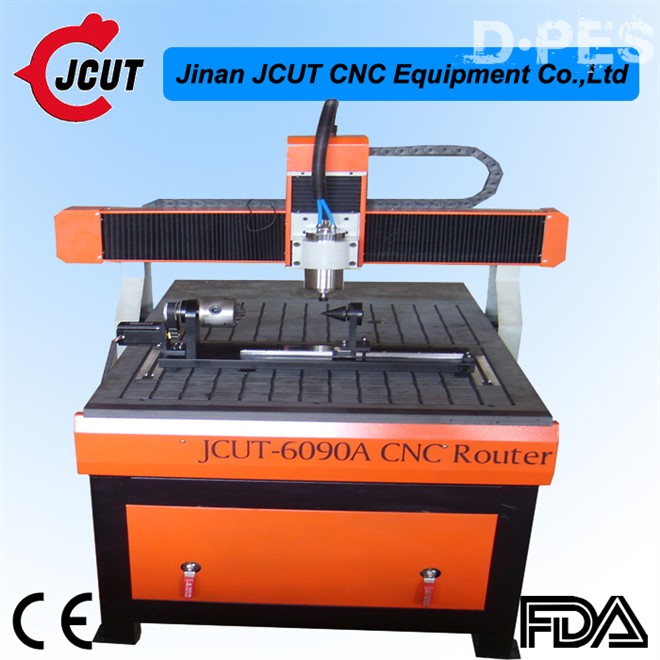

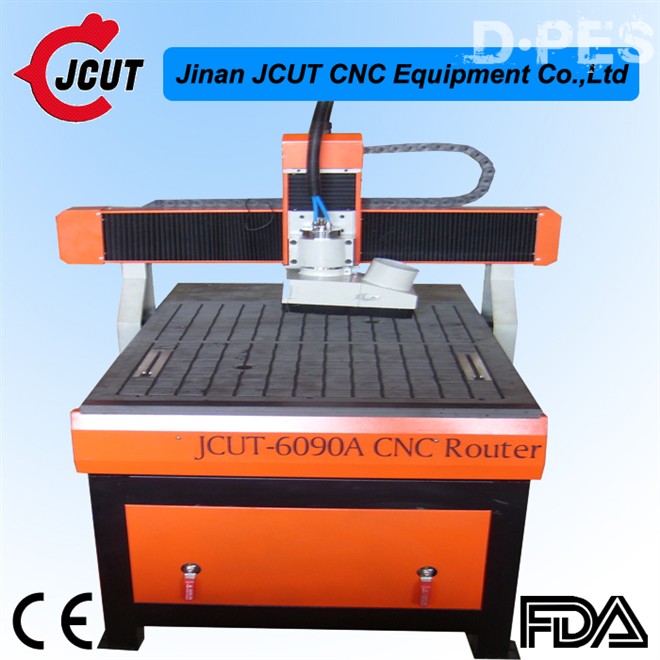

6090 4 axis cnc router for cylinder/column/round object carving JCUT-6090A (23.6X35.4X5.9
inch)
Features:with
100mm diamter,900mm length rotary axis
Applications:
advertisement engraving, advertisement
cutting, stone processing cutting, Cu and Al molding cutting, mold manufacturing
cutting, wood processing cutting, wood door manufacturing cutting, craft
manufacturing cutting, light box cutting, building mold cutting, indoor
decoration cutting, wave board processing cutting, light equipment, mold
processing cutting, sign and mark manufacturing cutting, acryl board processing
cutting, stamp cutting.
Parameters:
Machine
body: whole cast iron
Guide way:
circular guide way
Working Area
(X*Y*Z):600X900X150mm (23.6X35.4X5.9 inch)
Processing
accuracy: 0.01mm
Repositioning
accuracy: 0.05mm
Spindle:
1.5KW variable speed, water-cooled
Spindle
rotating speed: 0-24000rpm/min
Max Moving
Speed: 6000mm/min
Working
speed: 0-5000mm/min
Driving
mode: Ball screw
Voltage:
AC220V/50Hz
Max. Power
consumption: 1.9KW
Feeding
Height: 150mm
Drive motor:
Stepper
Command:
G.code , mmg , plt , uoo,HPGL
Control
software: Nctudio
Compatible
Software: Type3, Art cut, Art CAM, master CAM software
Certificate:
CE,FDA
Pack
dimensions: 1400mm X 1250mm X 1600mm wooden trunk
Net weight:
220KG
Option:
Rotary axis, vacuum table, dust collector
