1212 4 axis cnc router/4 axis cnc
router machine for cyliner engraving JCUT-1212A-2X
Detailed Product
Description

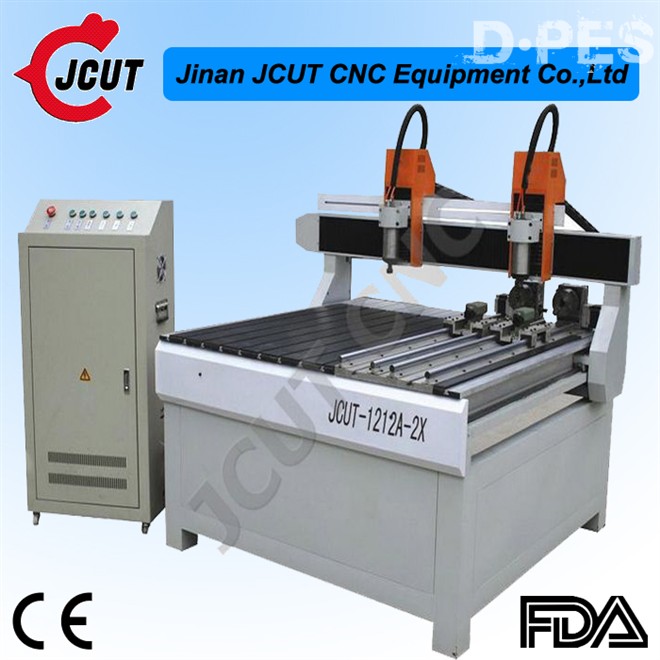

CNC Machine JCUT-1212A-2X
two spindle and two rotary axises
cylindrical guideway
driving
mode:ball screw
Advantages of Jcut
Serial Products:
1.1.5KW variable speed, water-cooled spindle, high precision, long lifetime.
2.Whole machine is welded with seamless steel structure, good regidity. The side board of gantry adopt steel structure.
3. All adopt imported square orbit, two line sliding track, heavy loading, stable structure, high precision and long lifetime.
4. Adopt imported ballscrew, high precision.
5. Y axis adopt double motor driver, high performance.
Technical
Parameters:
|
Machine body:
|
Whole cast
iron
|
|
Working size
|
1200 X
(600+600) X 150mm
|
|
Spindle power
|
Two1.5kw
water-cooled spindle
|
|
Rotary
diameter
|
80mm
|
|
Guideway
|
Cylinderical
guideway
|
|
Drive mode
|
Ball
screw
|
|
Drive motor
|
stepper
motor
|
|
Control
software
|
Ncstudio
|
|
Design software
|
Artcam,Type3(we send
for free)
|
|
Optional
parts
|
Bigger
spindle, different rotary diameter
(100/130/160/200/250/320/500)
|
|
Body
dimensions
|
1500mm x
1600mm x 1500mm (with bracket)
|
|
Max. Feeding
height:
|
150mm or
bigger
|
|
Max.
Speed:
|
6000mm/min
|
|
Working
speed:
|
0 -
4000mm/min
|
|
Mechanical precision:
|
0.01mm
|
|
Max. Power
consumption:
|
3.7kW
|
|
Power
source:
|
AC220/50Hz
(or 110v/60HZ)
|
|
Memory:
|
without or
(DSP)
|
|
Spindle
speed:
|
0 -
24,000rpm
|
|
Command:
|
G code, u00,
mmg, plt
|
|
Running
circumstance temperature:
|
0 - 45 °
C
|
|
Relative
humidity:
|
30% -
75%
|
|
Pack
dimensions:
|
1700 x 1700 x
1600mm
|
|
Net
weight:
|
650kg (with
bracket)
|
|
Gross
weight:
|
750kg
|
Optional accessories:
1.
Rotary axis
----For
engraving on cylindrical shape materials. Please kindly tell us your cylindrical
shape materials’ length and diameter. Then we can add right rotary axis to the
machine.
2. Vacuum table (contain vacuum pump and vacuum
pipes)
----For fixing
the materials on the working table, especially for bigger working
table.
After
added vacuum table, the voltage will need to be 3 phase/380V.
3. Dust collector (contain dust collector pump and
dust collector pipes)
----For sucking
away the dusts, such as wood dusks and so on.
4. Bigger power spindle(1.5kw,2.2kw, 5.5kw and so
on)
Free
accessories:
Controlling
Box, Controlling Card and Software, Water Tank, Water-cooling Pump, Engraving
Tools, Data Wire, Power Line, Brush, Clamp, and Spanner.
Warranty:
One year for
the whole machine and six months for the spindle
Machine
Parts:
Applications:
advertisement engraving, advertisement cutting,
stone processing cutting, Cu and Al molding cutting, mold manufacturing cutting,
wood processing cutting, wood door manufacturing cutting, craft manufacturing
cutting, light box cutting, building mold cutting, indoor decoration cutting,
wave board processing cutting, light equipment mold processing cutting, sign and
mark manufacturing cutting, Acryl board processing cutting, stamp cutting, and
PCB cutting.
