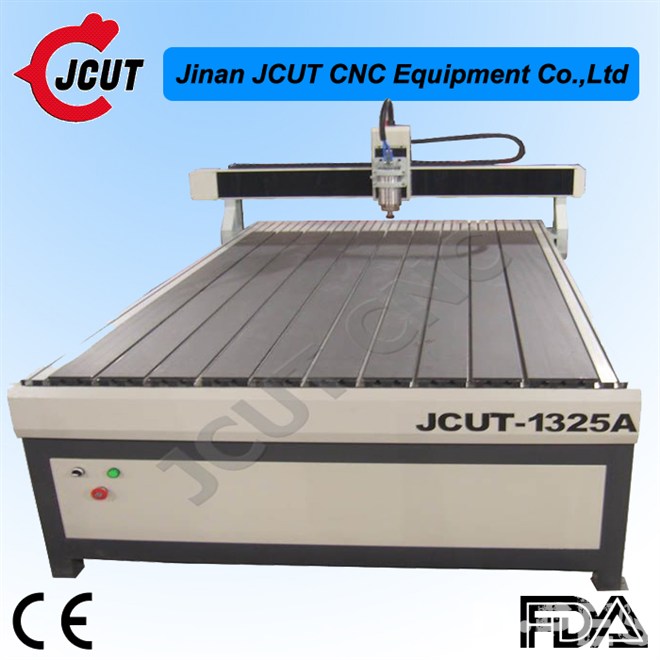

New design china cnc wood mdf engraving machine/chinese woodworking cnc router/mould cnc router JCUT-1325A (49.2X96.8X5.9 inch)
Applications:
advertisement engraving, advertisement
cutting, stone processing cutting, Cu and Al molding cutting, mold manufacturing
cutting, wood processing cutting, wood door manufacturing cutting, craft
manufacturing cutting, light box cutting, building mold cutting, indoor
decoration cutting, wave board processing cutting, light equipment, mold
processing cutting, sign and mark manufacturing cutting, acryl board processing
cutting, stamp cutting.
Parameters:
Machine
body: whole cast iron
Guideway:
circular guideway
Working Area
(X*Y*Z):1250X2460X150mm (49.2X96.8X5.9 inch)
Drive mode:
ball screw
Processing
accuracy: 0.01mm
Repositioning
accuracy: 0.05mm
Spindle:
2.2KW variable speed, water-cooled
Spindle
rotating speed: 0-24000rpm/min
Max Moving
Speed: 6000mm/min
Working
speed: 0-5000mm/min
Driving
mode: Ball screw
Voltage:
AC220V/50Hz and AC380v
Max. Power
consumption: 2.9KW
Feeding
Height: 150mm
Drive motor:
Stepper
Command:
G.code , mmg , plt , uoo,HPGL
Control
software:Ncstudio
Compatible
Software: Type3, Artcut, ArtCAM, masterCAM software
Certificate:
CE,FDA
Pack
dimensions:3200mm X 1900mm X 1700mm wooden trunk
Net weight:
480KG
Option:
Rotary axis, vacuum table, dust collector, or bigger spindle.
Different
working
size:
600X800mm/600X1500mm/900X1500mm/1200x1200mm/1200x1500mm/1200x1800mm/1200x2400mm
or other sizes according to customers’
Key point:
Please kindly tell us your engraving or cutting materials, and materials'
size.
Then we can quickly check and recommend to you the right machine with right
working area.
parts for free:
Software in CD, Controlling Card (PCI), Water Tank, Water Pump, Engraving
Tools, Data Wire, Power Line, Brush, Spanner and Clamp.
option accessories:
1. Rotary axis
----For engraving on cylindrical shape materials. Please kindly tell us your
cylindrical shape materials' length and diameter. Then we can add right rotary
axis to the machine.
2. Water cycling system (water sink on the working table)
----For engraving on stone or metal materials. It is used to down the
spindle's high temperature.
3. Vacuum table (contain vacuum pump and vacuum pipes)
----For fixing materials on the working table, especially for bigger working
table.
After added vacuum table, voltage will be 3 phase/380V.
4. Dust collector (contain dust collector pump and dust collector pipes)
----For sucking away the dusts, such as wood dusks and so on.
Freight:
We can send this machine to your port or door address by sea or by air. Do as
you need.
If sending to your port, please tell us your port.
If sending to your door address, please tell us your address, and better with
post code.
Warranty:
One year for machine
We supply online service 24 hours a day MSN, Skype, Yahoo, Gmail and so
on.
You can also contact us by email, and we will reply in 24 hours, or by phone
if urgently.
