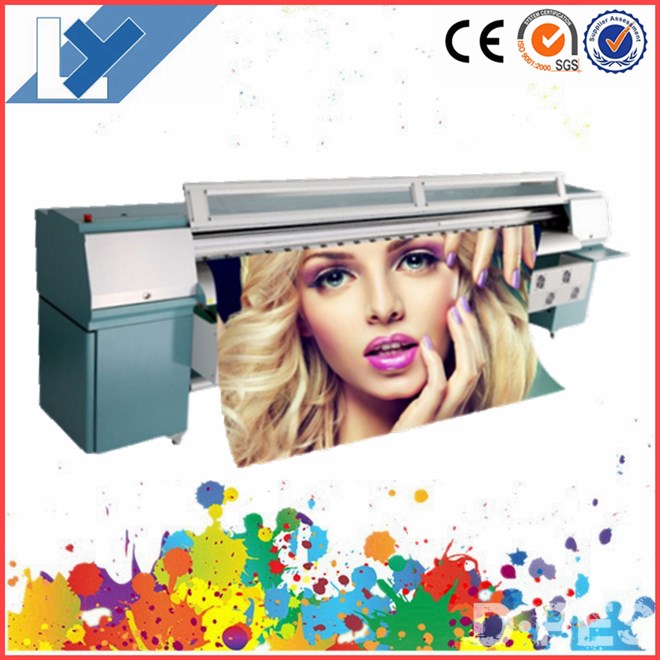

Infiniti/Challenger stable printer FY-3208T with Seiko 510/35pl printhead
1.Low ink sensor, auto or manual ink supply system.
2.Double four color printing, vivid color & high speed .
3.X, Y axis AC servo motor Electric drive pinch roller
4. Individual color cleaning minimizes the waste of the ink..
5. 3 way intelligent heater (pre/print/post) helps bring more vivid output.
6. The entire printing platform and the girder are made of the alloy-aluminum which is strong,flat and quiet.
High printing quality, high resolution
Equipped with 4/8 Pcs 510/35pl heads
High resolution, CMYK 4 color printing
Excellent Design
Can print both flex banner, vinyl sticker, one way vision
Environmental Protection
Using solvent ink, suitable for both indoor and outdoor printing,
Small odor good for enviroment.
Professional Service
One year warranty for all machine
24 hours on line tech support
Specification:
| Model |
FY-3208T |
| Print Head |
Seiko Spt510/35pl |
| Number of Print Head |
8 Heads |
| Maximum Print Width |
3,200mm(125.98") |
| Print Speed |
Draft |
2 Pass 101m 2 / hr |
| Standard |
3 Pass 76m 2 / hr |
| Quality |
3 Pass 51m 2 / hr |
| High Quality |
4 Pass 28m 2 / hr |
| Max. Media Width |
3,300mm(129.92') |
| Max. Media Weight |
80kg |
| Media Type |
Frontlit, Backlit, Vinyl, Polyester, Window Film, Mesh, Leather, Backlit Film, Blue Back Paper^ |
| Media Thickness |
4mm(Max.) |
| Heating System |
3 way intelligent heater |
| Auto Media Feeding & Take-up System |
Equipped |
| Ink |
Solvent Ink (C\M\Y\K) |
| Auto Cleaning System |
Positive Pressure Cleaning, Anti-Clogging Flash Function & Capping System |
| Print Interface |
USB 2.0 |
| Power Specification |
AC 220V/230V 50Hz/60Hz; Printing: 770W
Heater: 1980W |
| Operational Environment |
Temperature: 20°C-28°C Humidity: 40%-60% |
| Compatible RIP Software |
Photoprint, UltraPrint, Topaz, Wasatch, Caldera, Maintop |
| Machine size |
L4500mm X W905mm X H1280mm 363kg |
| Package size |
L4460mm X W1050mm X H1520mm 625kg |
Challenger INKJET RINTER Details
Printing Software
Printing Sample
what our machine can print ?
A:PVC Flex Banner,Poster Paper,Photo Paper,Backlit Film,One Way,Vision Vinyl,Reflective
Film,Ceiling Mantle,Wall Paper/Decal,Car StickerMesh/Canvas,Adhesive PP,Transparent Films,
etc
where are they applicated ?
A:Large format light boxes,Outdoor displays,Airport light boxes,Building murals,In-storedisplays,
Wall paper decoration,Backlit bus shelter,etc
Our Certificate
After-Sales Service
1) Warranty Time: 1 year, within this period we will send spare part free to you if there are any problems with them (except artificial damage).
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before packaging.
3) Technical services: We have professional engineers available to service machinery overseas, once we receive your inquiry about fault we will reply you within 24 hours, and offer you any technical service about machine.
4) Lifelong Services: We provide lifelong services for all the products we sold out, and supply the spare
parts with competitive price.
5) File Services: We can supply Manual Specification, Operating Video and other files you need.
6) Language: We have a professional sales team who are good at English to ensure zero communication barriers.
Company Information
Kong Hong LiYu Technology Co.,Limited is the leading manufacturer of quality direct to wall inkjet printer, industrial coding and marking equipment. We are committed to improving the quality of products and services by providing high quality and cost effective products that meet our customers' needs. LiYu has more than 15 patents, advanced production line, gathered extensive knowledge engineer, flexible payment terms, strictly quality control of parts and finished goods, professional after-service.
We have provided solution and service to customers from 120 countries in different fields and will continue to embrace and create a better future with open mind.
Looking Forward your Inquiry......
